Pneumatic Actuation
Overview

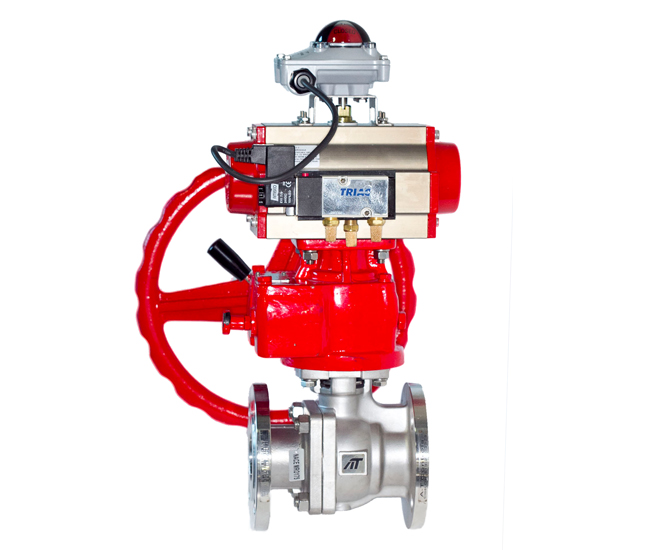

W&O provides pneumatic actuation that has a high cycle life with many actuation accessories available for use within the pneumatic system. To meet our customers’ needs, we offer pneumatic actuation that is inexpensive, easily maintained and readily available.
Features include:
• Rotary application: rack-and-pinion, scotch-yoke and canted-yoke type
• Linear application: piston type
• Double acting (fail in-place) and spring return (fail safe)
• Shorter lead time for pneumatic actuators
Supply Pressure Range
- 40 psi - 150 psi
Materials
- Ductile Iron
- Hard Anodized Aluminum
- Stainless Steel
Torque
- 30 in-lbs - 1,600,000 in-lbs
Trust Range
- 478 lbs - 216,676 lbs
Controls
- Airset / Filter Regulator
- Limit Switches
- Line or Namur Mount Solenoids
- Lock up Valves
- Mechanical Overrides with Block and Bleed Valves
- Pneumatic, Electro-Pneumatic and Digital Positioners
- Speed / Flow Controls
